EB x200 hardware series

Modular I/O slot cards, desktop devices, and I/O modules

Our latest EB x200 hardware series offers various extendable I/O interface slot cards and desktop devices, that allow for a maximum of flexibility to suit your specific testing and validation requirements. The high-performance computing power, combined with a powerful FPGA that carries multiple communication controllers, makes the EB x200 hardware series the first choice for challenging bus communication emulations.

The EB x200 hardware series at a glance:

  • EB 2200, a modular I/O interface device for desktop-use
  • EB 5200, modular I/O slot card for PC platforms such as EB Assist CAR Box
  • EB 2200 and EB 5200 support all typical vehicle bus communication systems and rest bus simulation
  • Our extendable hardware can be adapted to your specific I/O interface needs:
    FlexRay (A+B), CAN (LS/HS/FD), LIN, Ethernet, BroadR-Reach, DIO, GPS are supported
  • Additional modules are available upon request to meet your individual needs

EB 2200 and EB 5200 both come with a high-performance dual-core µC with 2x 1 GHz computing power. One core executes real-time tasks using EB tresos AutoCore OS. The other core hosts a Linux system. User-specific code can be executed on both operating systems.

Click here for more details.

EB_2200

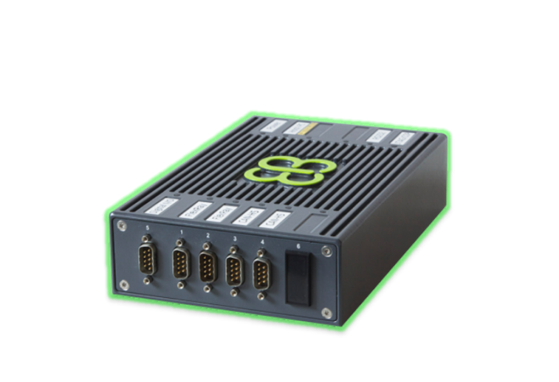

EB 2200

  • Powerful modular desktop interface extendable with up to 9 I/O interface slots
  • Extendable interfaces: FlexRay (up to 2), CAN-HS/LS/FD (up to 8), LIN (up to 2), Digital I/O, GPS, BroadR-Reach
  • DSUB9 connectors, 6,5V to 30V power supply
  • Dual-Core µC with 2x 1GHz computing power
  • Specific hardware device filter for EB Assist ADTF 2, other platforms on request



EB_5200

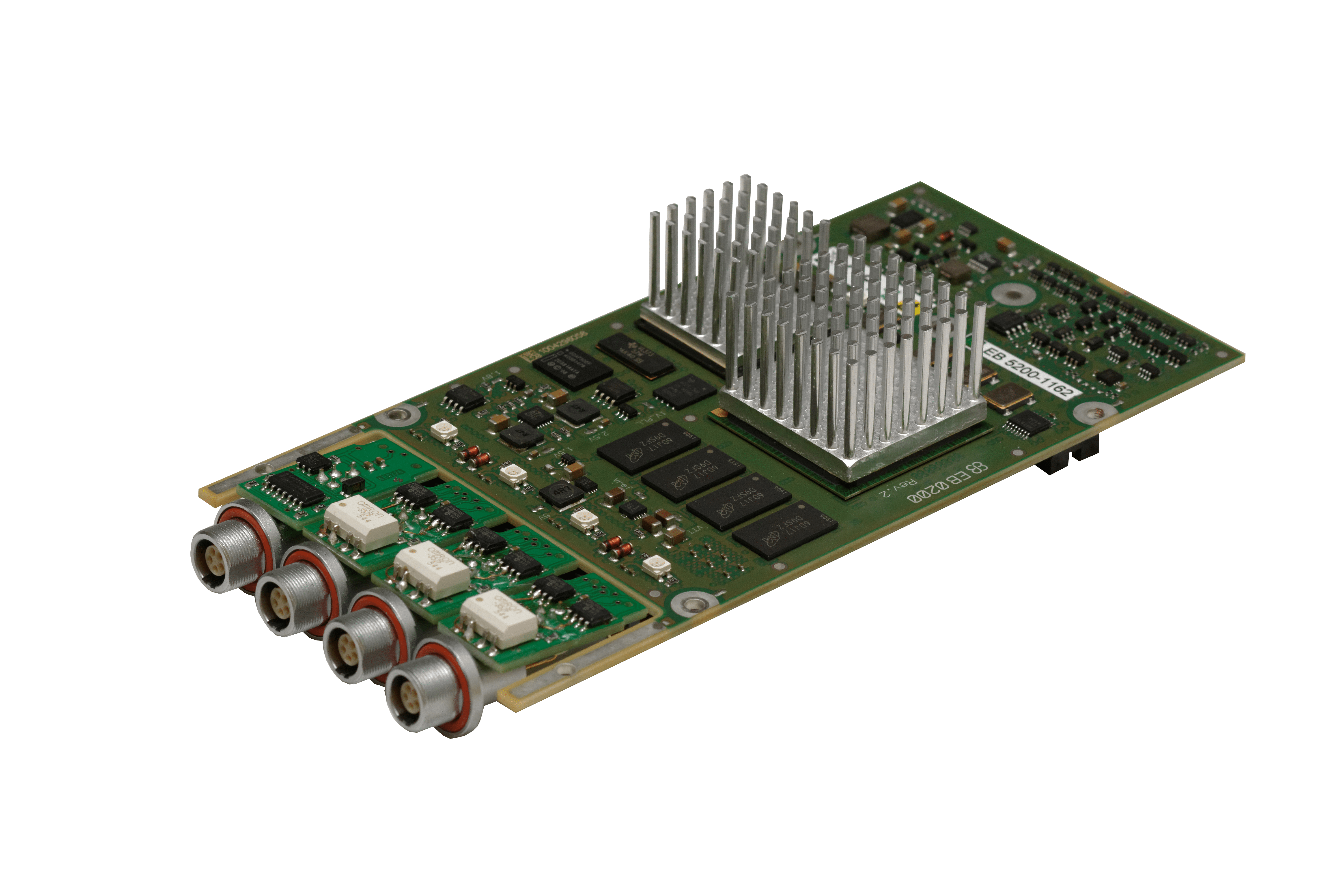

EB 5200

  • Powerful modular I/O slot card extendable with up to 9 I/O interface slots
  • Extendable Interfaces: FlexRay (up to 2), CAN-HS/LS/FD (up to 8), LIN (up to 2), Digital I/O, Ethernet, BroadR-Reach
  • Adapter boards for PCIe, PCI, PXI, cPCI, etc.
  • Active card with Dual-Core µC (2x 1GHz)
  • Specific hardware device filter for EB Assist ADTF 2, other platforms on request
  • High speed and low latency make it the perfect solution for hardware-in-the-loop (HiL) systems

Other I/O slot cards that e.g. support LVDS interfaces are also available.
